A rapid method to quantify antibodies against SARS-CoV-2

Research Press Release | July 15, 2021

Scientists have developed a rapid, highly accurate test to detect antibodies against the spike protein of SARS-CoV-2 in human serum, opening a new avenue for understanding the full extent of the pandemic and evaluating the effectiveness of vaccines.

In the 18 months since the emergence of Covid-19 pandemic, great strides have been made in discovering and inventing various approaches to track and control the spread of the SARS-CoV-2 virus. Rapid and accurate diagnosis has always been vital in this regard. The gold standard since the beginning of the pandemic has been the RT-PCR method; however,  it is time-consuming, labor-intensive, and requires sophisticated equipment, and can only detect the presence of viral RNA in the samples.

A team of scientists from Japan, including Professor Manabu Tokeshi of Hokkaido University’s Faculty of Engineering, have developed a 20-minute test to detect and quantify antibodies against SARS-CoV-2 in human serum. Their findings were published in the journal Biosensors and Bioelectronics.

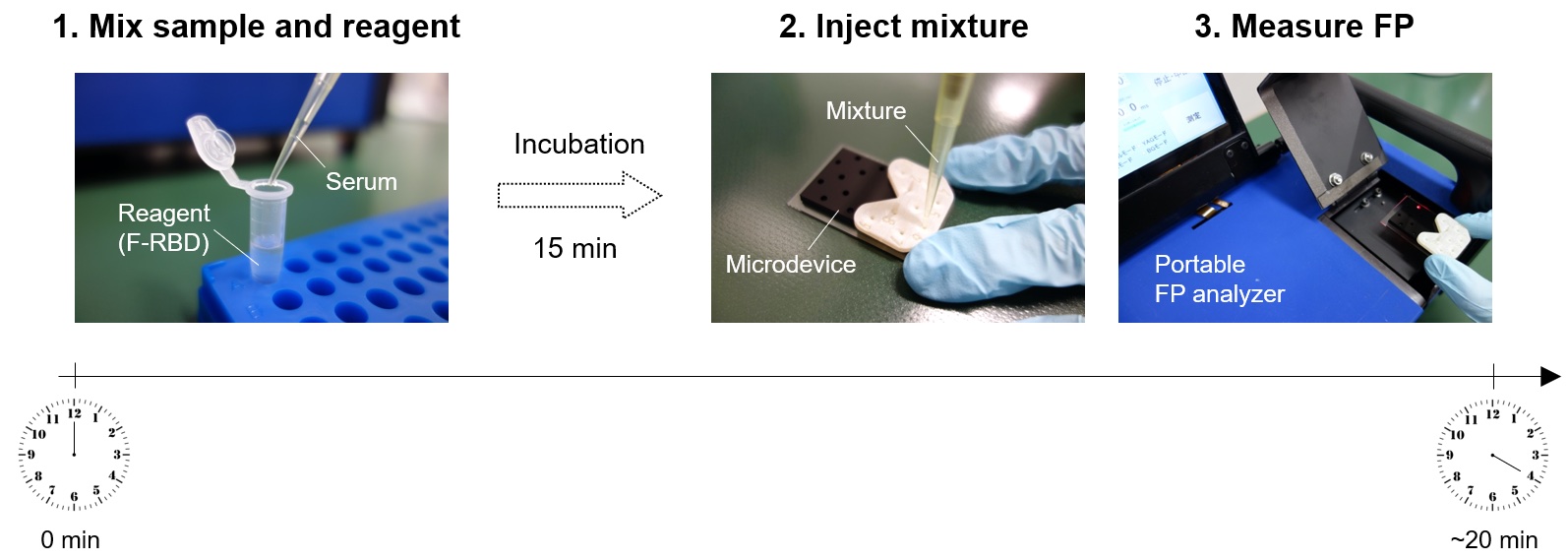

The fluorescence polarization immunoassay developed to detect and quantify antibodies against SARS-CoV-2. If present in a serum sample, antibodies against the SARS-CoV-2 virus will bind to fluorescently-labelled recombinant SARS-CoV-2 spike proteins (F-RBD); the antibody-bound proteins emit polarized light, which is measured by a fluorescence polarization analyzer (Keine Nishiyama, et al. Biosensors and Bioelectronics. June 5, 2021).

It is estimated that between 40% to 45% of individuals infected with SARS-CoV-2 are asymptomatic — despite being infected, they do not develop any symptoms of the disease. Identifying individuals who may have had asymptomatic Covid-19 is important to understanding the full extent of the pandemic. RT-PCR can only detect the presence of the viral RNA in samples; individuals who have recovered from the pandemic will only have antibodies to the virus, which RT-PCR cannot detect.

There are commercially available tests to detect the presence of antibodies against SARS-CoV-2; however, the majority of these tests are inaccurate. Lateral flow immunoassay is one of the most common tests for diagnosis of Covid-19 based on antibody detection. While rapid, it is a qualitative method, and cannot be used for the quantification of antibodies. Further, the method does not scale well, resulting in a low cost efficiency.

The scientists developed a method of detecting antibodies against SARS-CoV-2 in human serum using a method called non-competitive fluorescence polarization immunoassay (FPIA). This method is not just rapid, but can also be used to quantify the antibodies. FPIA has been used in the food and medical industry; the team has previously made many innovations to the method and associated equipment, including the development of a portable fluorescence polarization analyzer.

FPIA requires fluorescently-labelled recombinant SARS-CoV-2 spike proteins (F-RBD) and human serum to be mixed together for the test. Individuals who have been infected with or vaccinated against SARS-CoV-2 will have anti-spike protein antibodies in their serum. When these antibodies bind to F-RBD, polarised light is emitted, while F-RBD alone emits depolarized light. By measuring the degree of polarisation using a fluorescence polarization analyser, the concentration of antibodies can be determined. The scientists optimised the test and evaluated it using samples of human serum from individuals diagnosed with Covid-19 and from those who had not been infected by SARS-CoV-2.

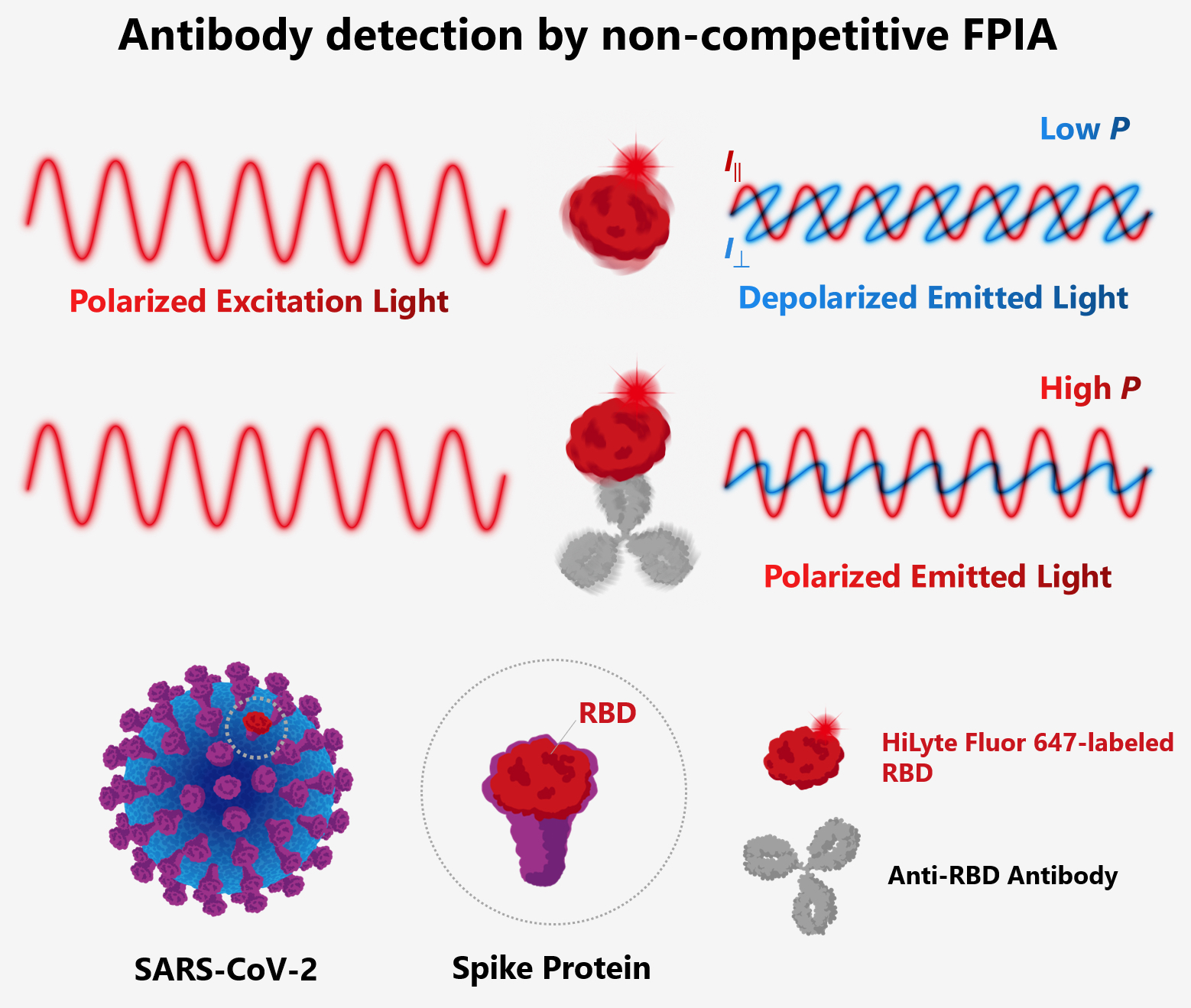

The principle behind FPIA for detection of antibodies against SARS-CoV-2. When free fluorescently-labelled recombinant SARS-CoV-2 spike proteins (F-RBD) are exposed to a specific wavelength of polarized light, they emit depolarized light. However, if F-RBD are bound to anti-RBD antibodies, they emit polarized light instead, which can be measured (Keine Nishiyama, et al. Biosensors and Bioelectronics. June 5, 2021).

The test was demonstrated to be highly accurate, quick and easy to perform, with high throughput. This test requires about 20 minutes to complete, compared to about 2 hours for other tests; furthermore, the equipment required for the test is highly portable, weighing only 4.3 kg. Taken all together, these features make the test an excellent option for detecting and quantifying antibodies against SARS-CoV-2. The test can now be used for two purposes: screening large populations to determine the exact extent of the pandemic, and from evaluating the effectiveness of SARS-CoV-2 vaccines based on the antibody response.

Kazuki Takahashi (left), co-first author of the paper and Manabu Tokeshi (right), corresponding author (Photo: Manabu Tokeshi).

Original Article:

Keine Nishiyama, et al. Facile and rapid detection of SARS-CoV-2 antibody based on a noncompetitive fluorescence polarization immunoassay in human serum samples. Biosensors and Bioelectronics. June 5, 2021.

DOI: 10.1016/j.bios.2021.113414


This work was supported by the Japan Science and Technology Agency’s JST-SENTAN program (JPMJSN16A2); the Nakatani Foundation for Advancement of Measuring Technologies in Biomedical Engineering; the Japan Society for the Promotion of Science (JSPS) KAKENHI (JP20H02760) and Grant-in-Aid for JSPS Fellows (20J11226); and the Cooperative Research Program of the Network Joint Research Center for Materials and Devices (NJRC Mat. & Dev.).


Professor Manabu Tokeshi

Faculty of Engineering

Hokkaido University

Email: tokeshi[at]eng.hokudai.ac.jp

Sohail Keegan Pinto (International Public Relations Specialist)

Public Relations Division

Hokkaido University

Tel: +81-11-706-2185

Skype: hokudai.pr1

Email: en-press[at]general.hokudai.ac.jp
